Page 3 of 3

Re: Filter on Xbrowse

PostPosted: Sun May 05, 2024 11:29 am
by karinha

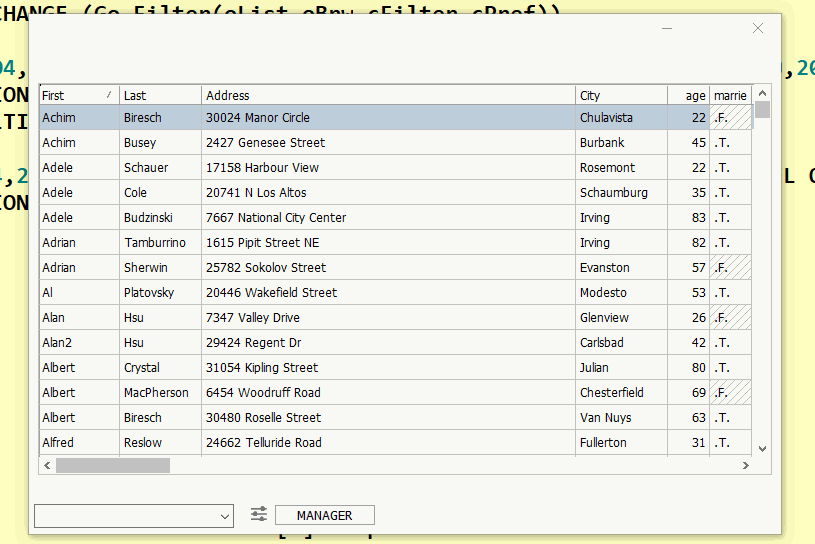

https://imgur.com/A4uV7ac


Un agradecimiento especial a Silvio Falconi por la idea original.

Special thanks to Silvio Falconi for the original idea.

Regards, saludos.

Re: Filter on Xbrowse

PostPosted: Sun May 05, 2024 3:08 pm
by Silvio.Falconi
karinha wrote:https://imgur.com/A4uV7ac


Un agradecimiento especial a Silvio Falconi por la idea original.

Special thanks to Silvio Falconi for the original idea.

Regards, saludos.

I Wish the filtrr on the same dialog

Re: Filter on Xbrowse

PostPosted: Sun May 05, 2024 3:41 pm
by Otto
Hello Marc, hello João,
We are now replacing the dummy JSON.
The function sendFilterData() makes a request to the server, and it responds with a JSON.
At the moment, we are not yet evaluating any indexes and filters, but simply querying the database.



Re: Filter on Xbrowse

PostPosted: Sun May 05, 2024 5:12 pm
by Marc Venken
Otto wrote:Marc,

sure, I can post the source code.

Do you have a Mod Harbour server installed?

Best regards,
Otto


Otto,

I have it installed and it seems to work with the old samples (periode : 07/2020)

The code from the sample, can you post it so that I can change it as sample ?

Re: Filter on Xbrowse

PostPosted: Sun May 05, 2024 5:24 pm
by Otto
Marc, here is the link to this sample:


https://mybergland.com/fwforum/challenge.zip

Best regards,
Otto

Re: Filter on Xbrowse

PostPosted: Sun May 05, 2024 10:00 pm
by Otto
Silvio sent me an email with a very interesting approach to setting filter conditions.
I think this is really a good way to set extensive filters.
I coded this query for webview and mod harbour use.
Best regards,
Otto



Code: Select all  Expand view


<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>Dynamic Filter Archive with Checkboxes</title>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/css/bootstrap.min.css" rel="stylesheet">
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/js/bootstrap.bundle.min.js"></script>
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
    <!-- Include Font Awesome -->
    <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0/css/all.min.css">
    <style>
        .checkbox-row {
            display: flex;
            flex-wrap: nowrap;
            gap: 10px;
        }

        .form-check {
            width: auto;
            margin-right: 5px;
        }

        .form-check .form-check-input {
            margin-right: 5px;
        }


        /* Add this to the <style> section */
            .container {
                border: 2px solid #000; /* Example: 2px solid black border */
                padding: 15px; /* Optional: Add padding for better visual separation */
                border-radius: 10px; /* Optional: Add rounded corners */
            }


            /* Set flex-grow to 0 so elements do not grow beyond their intrinsic size */
            #filtersContainer > div {
                flex: 0 0 auto;
                max-width: 300px; /* Optional: Adjust the max-width if needed */
            }

            /* Make the checkboxes visible and flexible */
            .checkbox-row {
                display: flex;
                flex-wrap: nowrap;
                gap: 10px;
            }

            .form-check {
                width: auto;
                margin-right: 5px;
            }

            .form-check .form-check-input {
                margin-right: 5px;
            }





        </style>
    </head>

    <body>
        <div class="container">
            <h1 class="mt-4">Archive Filters</h1>
            <div id="filtersContainer" class="d-flex flex-wrap gap-3">
                <div id="itemTypeSection" class="col-md-4 d-none">
                    <label for="itemTypeFilter" class="form-label">Item Type</label>
                    <select id="itemTypeFilter" class="form-select">
                        <option>All</option>
                        <option>Goods</option>
                        <option>Service</option>
                        <option>Bill of Materials</option>
                    </select>
                </div>

                <div id="productCategorySection" class="col-md-4 d-none">
                    <label for="productCategoryFilter" class="form-label">Product Category</label>
                    <select id="productCategoryFilter" class="form-select">
                        <option>Master Category</option>
                        <option>Sub Category</option>
                    </select>
                </div>

                <div id="departmentSection" class="col-md-4 d-none">
                    <label for="departmentFilter" class="form-label">Department</label>
                    <select id="departmentFilter" class="form-select">
                        <option>HR</option>
                        <option>Finance</option>
                        <option>IT</option>
                    </select>
                </div>

                <div id="brandSection" class="col-md-4 d-none">
                    <label for="brandFilter" class="form-label">Brand</label>
                    <select id="brandFilter" class="form-select">
                        <option>Brand A</option>
                        <option>Brand B</option>
                    </select>
                </div>

                <div id="supplierSection" class="col-md-4 d-none">
                    <label for="supplierFilter" class="form-label">Supplier</label>
                    <select id="supplierFilter" class="form-select">
                        <option>Supplier 1</option>
                        <option>Supplier 2</option>
                    </select>
                </div>

                <div id="warehouseSection" class="col-md-4 d-none">
                    <label for="warehouseFilter" class="form-label">Warehouse</label>
                    <select id="warehouseFilter" class="form-select">
                        <option>Warehouse A</option>
                        <option>Warehouse B</option>
                    </select>
                </div>

                <div id="locationSection" class="col-md-4 d-none">
                    <label for="locationFilter" class="form-label">Location</label>
                    <select id="locationFilter" class="form-select">
                        <option>Location A</option>
                        <option>Location B</option>
                    </select>
                </div>

                <div id="existenceSection" class="col-md-4 d-none">
                    <label for="existenceFilter" class="form-label">Existence</label>
                    <select id="existenceFilter" class="form-select">
                        <option>Greater than Zero</option>
                    </select>
                </div>

                <div id="creationDateSection" class="col-md-4 d-none">
                    <label for="creationDateFilter" class="form-label">Creation Date</label>
                    <input type="date" id="creationDateFilter" class="form-control">
                </div>

                <div id="movementDateSection" class="col-md-4 d-none">
                    <label for="movementDateFilter" class="form-label">Movement Date</label>
                    <input type="date" id="movementDateFilter" class="form-control">
                    <div class="form-check">
                        <input class="form-check-input" type="radio" name="movementRadio" id="movedRadio">
                        <label class="form-check-label" for="movedRadio">Moved</label>
                    </div>
                    <div class="form-check">
                        <input class="form-check-input" type="radio" name="movementRadio" id="notMovedRadio">
                        <label class="form-check-label" for="notMovedRadio">Not Moved</label>
                    </div>
                </div>


            </div>

            <div class="checkbox-row mb-4">
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleItemType">
                    <label class="form-check-label" for="toggleItemType">Item Type</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleProductCategory">
                    <label class="form-check-label" for="toggleProductCategory">Product Category</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleDepartment">
                    <label class="form-check-label" for="toggleDepartment">Department</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleBrand">
                    <label class="form-check-label" for="toggleBrand">Brand</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleSupplier">
                    <label class="form-check-label" for="toggleSupplier">Supplier</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleWarehouse">
                    <label class="form-check-label" for="toggleWarehouse">Warehouse</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleLocation">
                    <label class="form-check-label" for="toggleLocation">Location</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleExistence">
                    <label class="form-check-label" for="toggleExistence">Existence</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleCreationDate">
                    <label class="form-check-label" for="toggleCreationDate">Creation Date</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleDateMovement">
                    <label class="form-check-label" for="toggleDateMovement">Date of Movement</label>
                </div>
            </div>


            <div class="col-12 mt-3">
                <button type="button" id="applyFilters" class="btn btn-primary">Apply Filters</button>
                <button type="button" id="clearFilters" class="btn btn-secondary">Clear All</button>
            </div>

            <div id="result" class="mt-4">
                <!-- The filtered results will be displayed here -->
            </div>
        </div>

        <script>
            $(document).ready(function () {
                $('#toggleItemType').change(function () {
                    $('#itemTypeSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleProductCategory').change(function () {
                    $('#productCategorySection').toggleClass('d-none', !this.checked);
                });
                $('#toggleDepartment').change(function () {
                    $('#departmentSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleBrand').change(function () {
                    $('#brandSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleSupplier').change(function () {
                    $('#supplierSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleWarehouse').change(function () {
                    $('#warehouseSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleLocation').change(function () {
                    $('#locationSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleExistence').change(function () {
                    $('#existenceSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleCreationDate').change(function () {
                    $('#creationDateSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleDateMovement').change(function () {
                    $('#movementDateSection').toggleClass('d-none', !this.checked);
                });

                $('#applyFilters').click(function () {
                    let filters = {
                        itemType: $('#itemTypeSection').is(':visible') ? $('#itemTypeFilter').val() : null,
                        productCategory: $('#productCategorySection').is(':visible') ? $('#productCategoryFilter').val() : null,
                        department: $('#departmentSection').is(':visible') ? $('#departmentFilter').val() : null,
                        brand: $('#brandSection').is(':visible') ? $('#brandFilter').val() : null,
                        supplier: $('#supplierSection').is(':visible') ? $('#supplierFilter').val() : null,
                        warehouse: $('#warehouseSection').is(':visible') ? $('#warehouseFilter').val() : null,
                        location: $('#locationSection').is(':visible') ? $('#locationFilter').val() : null,
                        existence: $('#existenceSection').is(':visible') ? $('#existenceFilter').val() : null,
                        creationDate: $('#creationDateSection').is(':visible') ? $('#creationDateFilter').val() : null,
                        movementDate: $('#movementDateSection').is(':visible') ? $('#movementDateFilter').val() : null,
                        movementStatus: $('#movementDateSection').is(':visible') ? $('input[name="movementRadio"]:checked').next('label').text() : null
                    };
                    // Showing the values in an alert
                    alert(JSON.stringify(filters, null, 2) );
                    //     $('#result').html('<pre>' + JSON.stringify(filters, null, 2) + '</pre>');

                    // Logic to filter and display the data based on the filters
                    // This is where you would integrate with your data source to fetch and display the filtered data
                });
            });


            // Function to clear all filters
            function clearAllFilters() {
                // Explicitly handle the controlling checkboxes
                $('#toggleItemType, #toggleProductCategory, #toggleDepartment, #toggleBrand, #toggleSupplier, #toggleWarehouse, #toggleLocation, #toggleExistence, #toggleCreationDate, #toggleDateMovement')
                .prop('checked', false)
                .trigger('change'); // Trigger change to hide sections

                // Reset the values of all filter input fields and selects
                $('#filtersContainer select').each(function () {
                    $(this).prop('selectedIndex', 0); // Reset to first option
                });

                $('#filtersContainer input[type="radio"], #filtersContainer input[type="checkbox"]').not('[id^="toggle"]').each(function () {
                    $(this).prop('checked', false); // Clear checkboxes/radios that are not section toggles
                });

                $('#filtersContainer input[type="text"], #filtersContainer input[type="date"]').each(function () {
                    $(this).val(''); // Clear text and date inputs
                });

                // Hide all selection sections directly
                $('#filtersContainer > div').addClass('d-none');
            }

            // Event listener for the Clear All button
            $('#clearFilters').click(function () {
                clearAllFilters(); // Call the function to clear all filters
                $('#applyFilters').click(); // Trigger the Apply Filters button click
            });



        </script>

    </body>

    </html>




Re: Filter on Xbrowse

PostPosted: Mon May 06, 2024 9:02 am
by Silvio.Falconi
Otto wrote:Silvio sent me an email with a very interesting approach to setting filter conditions.
I think this is really a good way to set extensive filters.
I coded this query for webview and mod harbour use.
Best regards,
Otto



Code: Select all  Expand view


<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>Dynamic Filter Archive with Checkboxes</title>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/css/bootstrap.min.css" rel="stylesheet">
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/js/bootstrap.bundle.min.js"></script>
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
    <!-- Include Font Awesome -->
    <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0/css/all.min.css">
    <style>
        .checkbox-row {
            display: flex;
            flex-wrap: nowrap;
            gap: 10px;
        }

        .form-check {
            width: auto;
            margin-right: 5px;
        }

        .form-check .form-check-input {
            margin-right: 5px;
        }


        /* Add this to the <style> section */
            .container {
                border: 2px solid #000; /* Example: 2px solid black border */
                padding: 15px; /* Optional: Add padding for better visual separation */
                border-radius: 10px; /* Optional: Add rounded corners */
            }


            /* Set flex-grow to 0 so elements do not grow beyond their intrinsic size */
            #filtersContainer > div {
                flex: 0 0 auto;
                max-width: 300px; /* Optional: Adjust the max-width if needed */
            }

            /* Make the checkboxes visible and flexible */
            .checkbox-row {
                display: flex;
                flex-wrap: nowrap;
                gap: 10px;
            }

            .form-check {
                width: auto;
                margin-right: 5px;
            }

            .form-check .form-check-input {
                margin-right: 5px;
            }





        </style>
    </head>

    <body>
        <div class="container">
            <h1 class="mt-4">Archive Filters</h1>
            <div id="filtersContainer" class="d-flex flex-wrap gap-3">
                <div id="itemTypeSection" class="col-md-4 d-none">
                    <label for="itemTypeFilter" class="form-label">Item Type</label>
                    <select id="itemTypeFilter" class="form-select">
                        <option>All</option>
                        <option>Goods</option>
                        <option>Service</option>
                        <option>Bill of Materials</option>
                    </select>
                </div>

                <div id="productCategorySection" class="col-md-4 d-none">
                    <label for="productCategoryFilter" class="form-label">Product Category</label>
                    <select id="productCategoryFilter" class="form-select">
                        <option>Master Category</option>
                        <option>Sub Category</option>
                    </select>
                </div>

                <div id="departmentSection" class="col-md-4 d-none">
                    <label for="departmentFilter" class="form-label">Department</label>
                    <select id="departmentFilter" class="form-select">
                        <option>HR</option>
                        <option>Finance</option>
                        <option>IT</option>
                    </select>
                </div>

                <div id="brandSection" class="col-md-4 d-none">
                    <label for="brandFilter" class="form-label">Brand</label>
                    <select id="brandFilter" class="form-select">
                        <option>Brand A</option>
                        <option>Brand B</option>
                    </select>
                </div>

                <div id="supplierSection" class="col-md-4 d-none">
                    <label for="supplierFilter" class="form-label">Supplier</label>
                    <select id="supplierFilter" class="form-select">
                        <option>Supplier 1</option>
                        <option>Supplier 2</option>
                    </select>
                </div>

                <div id="warehouseSection" class="col-md-4 d-none">
                    <label for="warehouseFilter" class="form-label">Warehouse</label>
                    <select id="warehouseFilter" class="form-select">
                        <option>Warehouse A</option>
                        <option>Warehouse B</option>
                    </select>
                </div>

                <div id="locationSection" class="col-md-4 d-none">
                    <label for="locationFilter" class="form-label">Location</label>
                    <select id="locationFilter" class="form-select">
                        <option>Location A</option>
                        <option>Location B</option>
                    </select>
                </div>

                <div id="existenceSection" class="col-md-4 d-none">
                    <label for="existenceFilter" class="form-label">Existence</label>
                    <select id="existenceFilter" class="form-select">
                        <option>Greater than Zero</option>
                    </select>
                </div>

                <div id="creationDateSection" class="col-md-4 d-none">
                    <label for="creationDateFilter" class="form-label">Creation Date</label>
                    <input type="date" id="creationDateFilter" class="form-control">
                </div>

                <div id="movementDateSection" class="col-md-4 d-none">
                    <label for="movementDateFilter" class="form-label">Movement Date</label>
                    <input type="date" id="movementDateFilter" class="form-control">
                    <div class="form-check">
                        <input class="form-check-input" type="radio" name="movementRadio" id="movedRadio">
                        <label class="form-check-label" for="movedRadio">Moved</label>
                    </div>
                    <div class="form-check">
                        <input class="form-check-input" type="radio" name="movementRadio" id="notMovedRadio">
                        <label class="form-check-label" for="notMovedRadio">Not Moved</label>
                    </div>
                </div>


            </div>

            <div class="checkbox-row mb-4">
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleItemType">
                    <label class="form-check-label" for="toggleItemType">Item Type</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleProductCategory">
                    <label class="form-check-label" for="toggleProductCategory">Product Category</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleDepartment">
                    <label class="form-check-label" for="toggleDepartment">Department</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleBrand">
                    <label class="form-check-label" for="toggleBrand">Brand</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleSupplier">
                    <label class="form-check-label" for="toggleSupplier">Supplier</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleWarehouse">
                    <label class="form-check-label" for="toggleWarehouse">Warehouse</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleLocation">
                    <label class="form-check-label" for="toggleLocation">Location</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleExistence">
                    <label class="form-check-label" for="toggleExistence">Existence</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleCreationDate">
                    <label class="form-check-label" for="toggleCreationDate">Creation Date</label>
                </div>
                <div class="form-check">
                    <input class="form-check-input" type="checkbox" id="toggleDateMovement">
                    <label class="form-check-label" for="toggleDateMovement">Date of Movement</label>
                </div>
            </div>


            <div class="col-12 mt-3">
                <button type="button" id="applyFilters" class="btn btn-primary">Apply Filters</button>
                <button type="button" id="clearFilters" class="btn btn-secondary">Clear All</button>
            </div>

            <div id="result" class="mt-4">
                <!-- The filtered results will be displayed here -->
            </div>
        </div>

        <script>
            $(document).ready(function () {
                $('#toggleItemType').change(function () {
                    $('#itemTypeSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleProductCategory').change(function () {
                    $('#productCategorySection').toggleClass('d-none', !this.checked);
                });
                $('#toggleDepartment').change(function () {
                    $('#departmentSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleBrand').change(function () {
                    $('#brandSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleSupplier').change(function () {
                    $('#supplierSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleWarehouse').change(function () {
                    $('#warehouseSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleLocation').change(function () {
                    $('#locationSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleExistence').change(function () {
                    $('#existenceSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleCreationDate').change(function () {
                    $('#creationDateSection').toggleClass('d-none', !this.checked);
                });
                $('#toggleDateMovement').change(function () {
                    $('#movementDateSection').toggleClass('d-none', !this.checked);
                });

                $('#applyFilters').click(function () {
                    let filters = {
                        itemType: $('#itemTypeSection').is(':visible') ? $('#itemTypeFilter').val() : null,
                        productCategory: $('#productCategorySection').is(':visible') ? $('#productCategoryFilter').val() : null,
                        department: $('#departmentSection').is(':visible') ? $('#departmentFilter').val() : null,
                        brand: $('#brandSection').is(':visible') ? $('#brandFilter').val() : null,
                        supplier: $('#supplierSection').is(':visible') ? $('#supplierFilter').val() : null,
                        warehouse: $('#warehouseSection').is(':visible') ? $('#warehouseFilter').val() : null,
                        location: $('#locationSection').is(':visible') ? $('#locationFilter').val() : null,
                        existence: $('#existenceSection').is(':visible') ? $('#existenceFilter').val() : null,
                        creationDate: $('#creationDateSection').is(':visible') ? $('#creationDateFilter').val() : null,
                        movementDate: $('#movementDateSection').is(':visible') ? $('#movementDateFilter').val() : null,
                        movementStatus: $('#movementDateSection').is(':visible') ? $('input[name="movementRadio"]:checked').next('label').text() : null
                    };
                    // Showing the values in an alert
                    alert(JSON.stringify(filters, null, 2) );
                    //     $('#result').html('<pre>' + JSON.stringify(filters, null, 2) + '</pre>');

                    // Logic to filter and display the data based on the filters
                    // This is where you would integrate with your data source to fetch and display the filtered data
                });
            });


            // Function to clear all filters
            function clearAllFilters() {
                // Explicitly handle the controlling checkboxes
                $('#toggleItemType, #toggleProductCategory, #toggleDepartment, #toggleBrand, #toggleSupplier, #toggleWarehouse, #toggleLocation, #toggleExistence, #toggleCreationDate, #toggleDateMovement')
                .prop('checked', false)
                .trigger('change'); // Trigger change to hide sections

                // Reset the values of all filter input fields and selects
                $('#filtersContainer select').each(function () {
                    $(this).prop('selectedIndex', 0); // Reset to first option
                });

                $('#filtersContainer input[type="radio"], #filtersContainer input[type="checkbox"]').not('[id^="toggle"]').each(function () {
                    $(this).prop('checked', false); // Clear checkboxes/radios that are not section toggles
                });

                $('#filtersContainer input[type="text"], #filtersContainer input[type="date"]').each(function () {
                    $(this).val(''); // Clear text and date inputs
                });

                // Hide all selection sections directly
                $('#filtersContainer > div').addClass('d-none');
            }

            // Event listener for the Clear All button
            $('#clearFilters').click(function () {
                clearAllFilters(); // Call the function to clear all filters
                $('#applyFilters').click(); // Trigger the Apply Filters button click
            });



        </script>

    </body>

    </html>





It seems like a great solution but you should write it in fwh because I'm not using modharbour/html/webview

Re: Filter on Xbrowse

PostPosted: Mon May 06, 2024 11:13 am
by karinha
Good morning Master Otto, could you send me the FILE.DBF? It seems very EASY to create the filters in FWH according to your beautiful image, in WEBVIEW.

Buenos días Maestro Otto, ¿podría enviarme el FILE.DBF? Parece muy FÁCIL crear los filtros en FWH según tu bella imagen, en WEBVIEW.

Tks, gracias.

Regards, saludos.

Re: Filter on Xbrowse

PostPosted: Mon May 06, 2024 3:24 pm
by Marc Venken
João, have also a look in the filter setting of xbrowse self.

The advantidge is that you already have all the field you want to filter on.

Code: Select all  Expand view

#include "fivewin.ch"

function Main()

   local oDlg, oBrw, oFont
   local aData

   USE CUSTOMER
   aData := FW_DbfToArray( "FIRST,LAST,CITY" )
   CLOSE CUSTOMER

   DEFINE FONT oFont NAME "TAHOMA" SIZE 0,-14
   DEFINE DIALOG oDlg SIZE 700,500 PIXEL TRUEPIXEL FONT oFont

   @ 60,20 XBROWSE oBrw SIZE -20,-20 PIXEL OF oDlg ;
      DATASOURCE aData AUTOCOLS HEADERS "First", "Last", "City" ;
      CELL LINES NOBORDER AUTOSORT FOOTERS

   WITH OBJECT oBrw
      :aCols[ 1 ]:bFooter  := { || "Records : " + Str( oBrw:nLen ) }
      //
      :uBarGetVals   := Space( 10 )
      :bClrEdits     := { || { CLR_BLACK, CLR_YELLOW } }
      :lBarGetOnKeys := .t.
      :lGetBar       := .t.
      //
      :CreateFromCode()
   END

   @ 10, 20 BTNBMP PROMPT "Set Filter" SIZE 200,40 PIXEL OF oDlg FLAT ;
      ACTION ( xSetFilter( oBrw ), oBrw:SetFocus() )

   @ 10,240 BTNBMP PROMPT "Clear Filter" SIZE 200,40 PIXEL OF oDlg FLAT ;
      ACTION ( xClearFilter( oBrw ), oBrw:SetFocus() )

   ACTIVATE DIALOG oDlg CENTERED
   RELEASE FONT oFont

return nil

function xSetFilter( oBrw )

   local cFilter  := ""
   local oCol, c

   for each oCol in oBrw:aCols
      if !Empty( oCol:uBarGetVal )
         c  := Upper( AllTrim( oCol:uBarGetVal ) )
//         c  := "'" + c + "' $ Upper( aRow[" + LTrim( Str( oCol:nArrayCol ) ) + "] )"
         c  := "'" + c + "' $ Upper( cValToChar( aRow[" + LTrim( Str( oCol:nArrayCol ) ) + "] ) )"  // can be char,date,num
         if !Empty( cFilter )
            cFilter  += " .AND. "
         endif
         cFilter  += c
      endif
   next

   if Empty( cFilter )
      xClearFilter( oBrw )
   else
      cFilter  := "{ |c,aRow,oBrw| " + cFilter + " }"
      oBrw:bFilterExp  := &( cFilter )
      oBrw:ArrayIncrFilter( "dummy" )
      oBrw:Refresh()
      oBrw:SetFocus()
   endif

return .t.

function xClearFilter( oBrw )

   AEval( oBrw:aCols, { |o| If( o:oBarGet == nil, nil, o:oBarGet:cText := uValBlank( o:uBarGetVal ) ) } )
   if oBrw:nLen < Len( oBrw:aArrayData )
      oBrw:bKeyCount    := { || Len( oBrw:aArrayData ) }
      oBrw:Refresh()
   endif
   oBrw:SetFocus()

return .t.



Re: Filter on Xbrowse

PostPosted: Mon May 06, 2024 3:40 pm
by karinha
Excellent Marc. But this model does not help with the type of work that Silvio Falconi needs. Ask him to send you a video of how he would like to make the filters. Super complicated, expensive (many Euros) and time-consuming (laborious)

Excelente Marc. Pero este modelo no ayuda con el tipo de trabajo que necesita Silvio Falconi. Pídele que te envíe un vídeo de cómo le gustaría hacer los filtros. Súper complicado, caro (muchos euros) y lento (laborioso)

I wouldn't develop it for free for anyone here in Brazil. I would charge in dollars. hahahaha.

No lo desarrollaría gratis para nadie aquí en Brasil. Cobraría en dólares. jajajaja.

Regards, saludos.

Re: Filter on Xbrowse

PostPosted: Mon May 06, 2024 5:19 pm
by Otto
Dear João,
I don't have a .dbf file.
Here, I've only attempted to replicate the filter input as seen in Silvio's video.
I think it's a lot of work until it functions properly.
Regards,
Otto

Re: Filter on Xbrowse

PostPosted: Mon May 06, 2024 5:49 pm
by karinha
How sad, Master Otto. I understand. That's what I'm trying to explain to Silvio, without the databases to "Tie" the codes, it gets complicated, as everything depends on the databases. And like I said, this is expensive and very time-consuming.

Qué triste, Maestro Otto. Entiendo. Eso es lo que le intento explicar a Silvio, sin las bases de datos para "Atar" los códigos, se complica, ya que todo depende de las bases de datos. Y como dije, esto es costoso y requiere mucho tiempo.

Tks, gracias.

Regards, saludos.

Re: Filter on Xbrowse

PostPosted: Wed May 08, 2024 10:25 am
by Silvio.Falconi
It was not what I had to do, but in part I solved my problem.

- is compatible with all archives
-for each table or archive create an ini file
- all the filters and many lines for each filter are saved in the ini file




I still have to perfect it but it seems to work
All times are UTC
Page 3 of 3
Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
http://www.phpbb.com/
